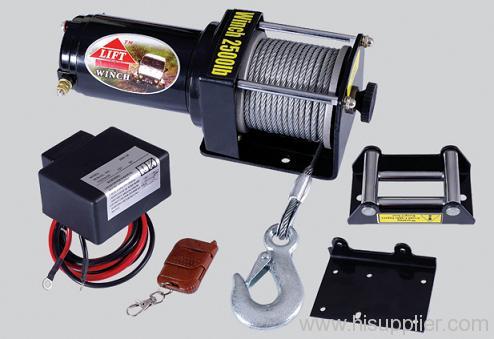

2500lb winch

Rated line pull : 2500 lbs (1133kgs) single line
Motor : Permanent magnet, 0.7kw/0.9hp 12v;0.8kw/1.0hp(24v)
Gear reduction ratio : 153:1
Cable (Dia x L) : Φ5/32"*49'(Φ4mm*15m)
Drum size (Dia x L) : Φ1.24"*2.88"(Φ31.5mm*73mm)
Overall dimensions(L X W X H) : 11.2"*4.1"*4.1"(285mm*105mm*105mm)
Mounting bolt pattern : 3.13"(79.5mm)
Packing size : 48*34*34cm 4PCS/CTN
Weight : N.W/G.W: 20kg/22kg


Notice:
1) Do not use winch as a hoist, do not use for transportaion of people.
2) Don't operate and spool under full load over one minute continuously.
3) While motor is overtheating, please stop for a while to cool down.
4) Limited warranty.

    2500lb winch has been presented above, want more similar products, please click LIFT winches,electric power winches,wireless winch.
    Our 2500lb winch is good in quality and competitive in price. We manufacture 2500lb winch and supply OEM, ODM service according to your requirement.
    If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
