Ningbo Lift Winch Manufacture Co., Ltd.

Payment & Shipping Terms
Payment Term:	T/T, L/C
Means of Transport:	On Request

Supply Capacity
Production Capacity:	5000pcs/month
Packing:	Carton

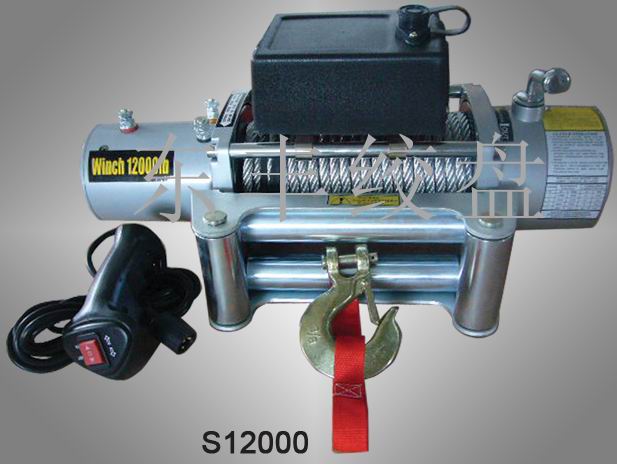

Single line rated pull 12000lb(5440kg)

Motor 6.0hp/4.5kw,Series Wound
Control  Remote Switch, 12ft(3.7m) lead
Gear train  3 Stage Planetary
Gear reduction ratio  265:1
Braking Action  Automatic In-The-Drum
Drum size  Diameter 2.52"(64mm) Length 8.82"(224mm)
Cable  28m of 9.1 mm diameter
Fairlead  4-Way Roller Fairlead
Battery Leads  2 gauge, 72"(1.83m)
Finish  Silver Grey
Overall Dimensions
(LxWxH)  21.3"x6.3"x8.6"(562x160x218mm)
Mounting Bolt Pattern   254mmx114.3mm

N.W./G.W.38KGS/42KGS
MEAS 59x20x39.5cm(1PC)
